A Dutch newspaper that was invited by Rijkswaterstaat (Dutch government), wrote an article about the test-track. The conclusion is that our 'wonder-asphalt' can last for 30 years!!!!
Self Healing Aspalt on the A58
On this Blog we will give info on the test track with Self Healing Asphalt that is built on the A58 near Vlissingen in The Netherlands. The Asphalt is a special type of ZOAB (very porous aphalt concrete) containing small steelwool fibres. A known but serious problem with ZOAB is ravelling: stones at the surface coming off in time due to microcracking in the binder. The special ZOAB that is developed at Delft University (sponsored by AgentschapNL) can be heated with induction energy due to the fibres that are present which closes the microcracks and with that extends the service life of the road.
Wednesday, 4 March 2015
CNN - interview and other TV-shows
In July 2014 Erik gave an interview for CNN.
you can see this online when you click on the CNN -logo
We had more TV shows in the last year which can be found by clicking on the links:
ARTE-TV
Pro-Sieben-TV
VOX-TV
We also published a lot of articles on the project. You can find them under the literature-tab.
you can see this online when you click on the CNN -logo
We had more TV shows in the last year which can be found by clicking on the links:
ARTE-TV
Pro-Sieben-TV
VOX-TV
We also published a lot of articles on the project. You can find them under the literature-tab.
aggregates stay colder
What you see in a close-up image during the trial on the test-track with the induction machine is that the asphalt is heated. But especially the bitumen heats up and the aggregates do not. This is perfect and it works as we intended it to be. Only the bitumen is heated by the 'hot' fibres. The aggregates should stay cold in order cool the material down again. In that way the cars can use the road shortly after the treatment.
Test with induction machine!
In June 2014 we did a test with the prototype of the induction machine on the test-track on the A58 near Vlissingen. The result of this tests are very promising,

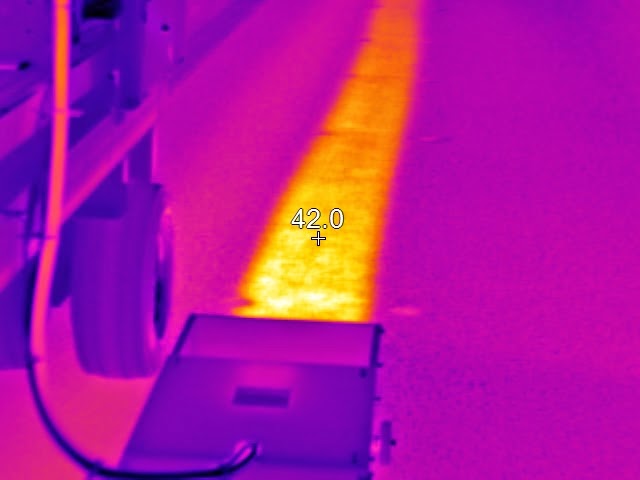

Below you see an image taken with an infrared camera during the test:
Below you see an image taken with an infrared camera during the test:
The blogger is back.......
It is some time ago since our last item on the blog. However a lot of things happened since the last item was post. We will give an update with a few items and will try to place more updates in the future.
Wednesday, 20 February 2013
Thursday, 6 December 2012
TEDxDelft talk Erik is online
The TEDxDelft talk that Erik gave in October is now online.
You can watch it on: www.tedxdelft.nl
or you can go directly to YOUTUBE
You can watch it on: www.tedxdelft.nl
or you can go directly to YOUTUBE
PLSE 2012
Yesterday Erik gave an invited presentation at the PLSE-2012 conference in Hong Kong on self healing concrete an asphalt.
Sunday, 14 October 2012
Saturday, 6 October 2012
Erik performs at TEDx Delft
Yesterday Erik gave a presentation on self healing asphalt at TEDx-Delft.
You can watch the presentation on the TEDx-Delft page.
You can watch the presentation on the TEDx-Delft page.
Wednesday, 1 August 2012
PhD defence of Quantao Liu
Quantao Liu will defend his PhD-thesis on October 2nd, 2012 at 10:00 am in the Aula of Delft University.
The title of his thesis is: "Induction Healing of Porous Asphalt Concrete".
After the PhD-defence you can download the pdf-version of the thesis from this BLOG.
Click here to get the PhD-Thesis.
The title of his thesis is: "Induction Healing of Porous Asphalt Concrete".
After the PhD-defence you can download the pdf-version of the thesis from this BLOG.
Click here to get the PhD-Thesis.
Interview on BNR newsradio (in Dutch)
A few weeks ago Gerbert van Bochove (Breijn-Heijmans) and Martin van der Ven (Delft University) were interviewed bij BNR newsradio (in Dutch) about the development of our self healing asphalt. A new test section is prepared by Heijmans in Tilburg (Netherlands), which is explained in the interview.
You can listen at the recording at the BNR-website.
You can listen at the recording at the BNR-website.
Monday, 16 April 2012
Monday, 27 February 2012
Webinar Selfhealing concrete and asphalt
Today Erik gave a Webinar on Self Healing Concrete and Asphalt for Betonica.
You can watch back the webinar on the website of Betonica.
The presentation you can download here.
You can watch back the webinar on the website of Betonica.
The presentation you can download here.
Thursday, 9 February 2012
Friday, 3 February 2012
TRB conference Washington DC
Last week Quantao, Erik and Martin visited the anual TRB meeting in Washington DC and presented our concept of self healing asphalt. The article will be published in the TRB publication and a link will be placed on this site soon.
Monday, 24 October 2011
Strength Recovery Tests
Last week Quantao performed some strength recovery tests of beams on an elastic foundation.
The set up used for these tests is given below.
The test procedure consists of breaking the notched beam on the elastic foundation, heating the fractured beam, resting the heated beam for 6 hours and finally breaking the healed beam again.
The healing index is defined as the original strength divided by the healed strength).
The fractured beam showing the two fracture surfaces at the location of the notch is given below.
Next figure shows typical loading curves of original beam and healed beam (different heating temperatures)
The strength recovery ratios are presenteed in the next figure.
The fractured beam cannot heal the crack by itself at 5°C and 20 °C: the crack is too big to be healed by natural healing. Induction heating can heal the crack and the extent of healing depends on the heating temperature. The optimal heating temperature is 85°C to obtain highest strength recovery. Further heating causes binder drainage and swelling problems, which offsets the healing benefit.
The set up used for these tests is given below.
The test procedure consists of breaking the notched beam on the elastic foundation, heating the fractured beam, resting the heated beam for 6 hours and finally breaking the healed beam again.
The healing index is defined as the original strength divided by the healed strength).
The fractured beam showing the two fracture surfaces at the location of the notch is given below.
Next figure shows typical loading curves of original beam and healed beam (different heating temperatures)
The strength recovery ratios are presenteed in the next figure.
The fractured beam cannot heal the crack by itself at 5°C and 20 °C: the crack is too big to be healed by natural healing. Induction heating can heal the crack and the extent of healing depends on the heating temperature. The optimal heating temperature is 85°C to obtain highest strength recovery. Further heating causes binder drainage and swelling problems, which offsets the healing benefit.
Tuesday, 18 October 2011
Testing Different Coils
Last week we spend together with our partner SGS-Intron a day at the producer of the induction machine that we are using to heat and heal the asphalt. We once again found out that the mechanism of induction heating is influenced by many factors. To find the right combination of fibres in the material (length, cross section, amount, distribution) and settings of the machine (frequency, power, coil design etc) needs some insight knowledge, but also some trial and error.
We can not say that we had nothing to choose from..............
Wednesday, 5 October 2011
Breijn Symposium
Breijn is organising a symposium series this month about "Flexibilitiet in Levensduur"
Erik gave a presentation on Self Healing Materials yesterday. Last week Prof Sybrand van der Zwaag of Aerospace Engineering of TU Delft was the guest speaker and next week Prof Andre de Boer from TU Twente will take the floor. More info on the symposium can be found on the Breijn-website.
Main topic of the presentation was Self Healing Concrete and Asphalt.
The Self Healing Asphalt part was dealing with the subject on this blog.
More info on the Self Healing Concrete projects can be found on http://www.selfhealingconcrete.blogspot.com/
At the end of the symposium all participants received the Self Healing Breijn-Cube. Guess what kind of material this is?.....
Erik gave a presentation on Self Healing Materials yesterday. Last week Prof Sybrand van der Zwaag of Aerospace Engineering of TU Delft was the guest speaker and next week Prof Andre de Boer from TU Twente will take the floor. More info on the symposium can be found on the Breijn-website.
Main topic of the presentation was Self Healing Concrete and Asphalt.
The Self Healing Asphalt part was dealing with the subject on this blog.
More info on the Self Healing Concrete projects can be found on http://www.selfhealingconcrete.blogspot.com/
At the end of the symposium all participants received the Self Healing Breijn-Cube. Guess what kind of material this is?.....
Wednesday, 28 September 2011
more results from tests
Quantao obtained in the last weeks some new interesting data from the tests.
The tests that he performed are the 4-point bending fatigue tests on beams. See one of the posts below for the set-up. What comes out of the tests is that the optimum healing temperature is 85 C. The tests are done on 'fresh' samples and samples that are artificially aged to an age of about 5 years. The healing performance and fatigue life extension ratio of the fresh and aged samples is almost equal. In the aged samples we see a slight decrease of 2%.
In the graph below the fatigue life extension ratio is plotted for tests were we only had natural healing (just rest periods) and were we had our induction healing combined with rest periods.
The tests that he performed are the 4-point bending fatigue tests on beams. See one of the posts below for the set-up. What comes out of the tests is that the optimum healing temperature is 85 C. The tests are done on 'fresh' samples and samples that are artificially aged to an age of about 5 years. The healing performance and fatigue life extension ratio of the fresh and aged samples is almost equal. In the aged samples we see a slight decrease of 2%.
In the graph below the fatigue life extension ratio is plotted for tests were we only had natural healing (just rest periods) and were we had our induction healing combined with rest periods.
Sunday, 11 September 2011
RTL4 news item
RTL4 news had yesterday an item on road damage on Dutch highways. Self Healing Asphalt with steelwool was proposed as a possible solution. In the video you see some shots from the project in our lab.
RTL4 is a commercial TV station, which means you first have to watch a commercial before the video starts. Sorry about that.....
RTL4 is a commercial TV station, which means you first have to watch a commercial before the video starts. Sorry about that.....
Friday, 2 September 2011
Microscopy and Nano-Indentation
To measure the properties of our self healing asphalt we are doing a lot of different tests. These tests are performed on the virgin material, the aged material (after oxidation) and on the the damaged and subsequently healed material (after applying the induction healing).
We are applying also some new techniques, like microscopy on thin slices of 30 micrometer thick. See the image on the left.
Another technique we are using is nano-indentation on polished samples (image on right side). The indents are performed using a berkovich tip and a cooling stage at a temperature of -20 C with our Agilent G200 Nano Indenter.
We are applying also some new techniques, like microscopy on thin slices of 30 micrometer thick. See the image on the left.
Another technique we are using is nano-indentation on polished samples (image on right side). The indents are performed using a berkovich tip and a cooling stage at a temperature of -20 C with our Agilent G200 Nano Indenter.
Thursday, 1 September 2011
Very Nice Self Healing Product
If you are interested in other self healing products you should have a look at the video below. This is realy incredible!. It would be nice if our asphalt would perform in a similar way......
Sunday, 14 August 2011
Self Healing Concrete BLOG
We are proud to announce that we also created a BLOG for Self Healing Concrete.
If you want to find out more, have a look at:
http://www.selfhealingconcrete.blogspot.com/
If you want to find out more, have a look at:
http://www.selfhealingconcrete.blogspot.com/
